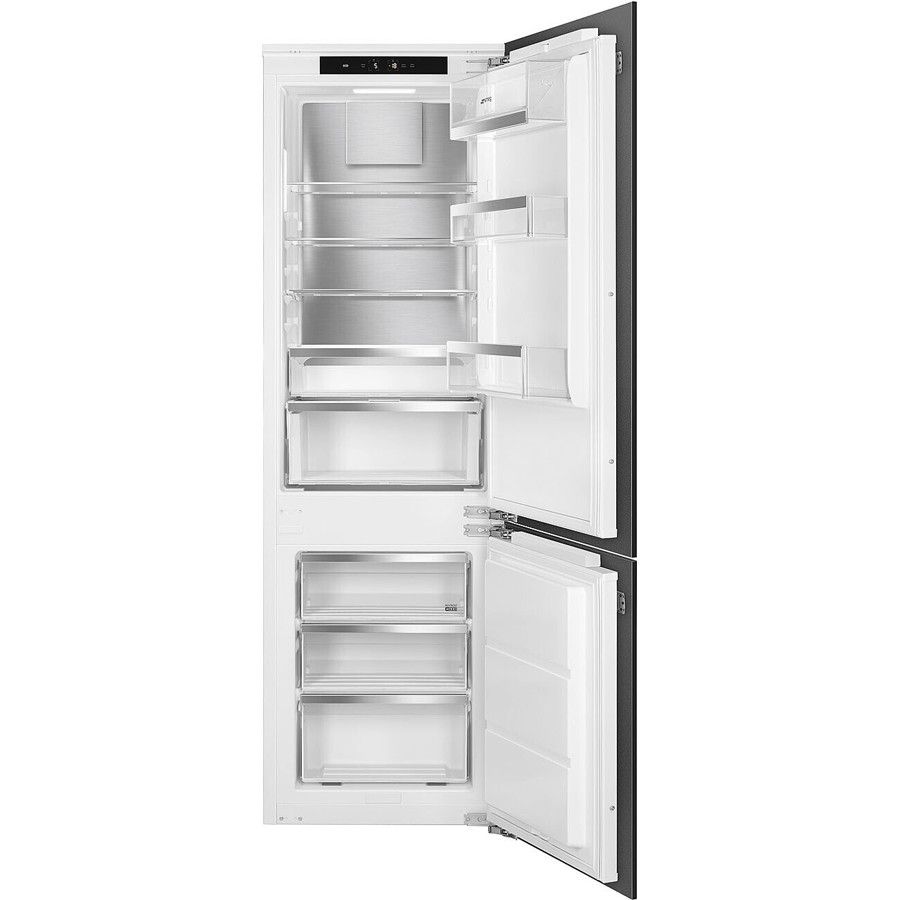

The SMEG C9174DN2D is a built-in bottom‑mount refrigerator with freezer unit designed to combine high functionality with seamless integration into kitchen cabinetry. Its No Frost dual cooling system ensures that neither the refrigerator nor the freezer requires manual defrosting, while ventilated and multiflow cooling maintains consistent conditions throughout. The Life Plus compartment helps preserve sensitive items such as meat or fish at optimal temperatures. The door‑on‑door hinge mechanism enables the appliance door and cabinet door to move together, preserving a clean, flush aesthetic. Users control settings via an internal LCD display, and protective alarms monitor door status and temperature anomalies. With its intelligent design and quiet inverter compressor, the C9174DN2D is well suited for modern kitchens seeking both performance and style.
Category | Detail |
---|---|
Product Type | Built-in refrigerator / freezer, bottom-mount |
Cooling System | Total No Frost, dual cooling circuits |
Defrost | Automatic (refrigerator and freezer) |
Door / Hinge | Right hinge (reversible), door‑on‑door self‑supporting |
Aesthetic / Finish | Universal design, white door and steel sides |
Interior Display / Controls | Internal LCD display (top of compartment) |
Refrigerator Compartments | 3 adjustable glass shelves; 1 fruit & vegetable drawer with glass cover |
Refrigerator Door Storage | 1 shelf with transparent cover; 2 adjustable door shelves; 1 bottle shelf |
Special Zones | Life Plus (0 °C) compartment |
Lighting | LED interior lighting in refrigerator |
Air Circulation | Fan + Metal Multiflow system |
Freezer Compartments | 3 drawers |
Accessories | Egg tray; ice box |
Alarms / Alerts | Door open alarm; temperature alarm |
Control Type | Electronic |
Compressor | Inverter (variable speed) |
Maximum Door Panel Load | 21 kg (for both refrigerator and freezer panels) |
Display Functions / Modes | Fast freezing, Fast cooling, ECO, Temperature alarm |
Parameter | Value |
---|---|
Total Net Volume | 244 litres |
Refrigerator / Fresh Volume | 182 litres |
Freezer / Frozen Volume | 62 litres |
Energy Efficiency Class | D |
Annual Energy Consumption | 173 kWh/year |
Noise Level | 35 dB(A) |
Noise Emission Class | B |
Freezing Capacity (24 h) | 7.3 kg / 24 h |
Temperature Rise Time (power cut) | 11 hours |
Climate Class | SN / N / ST / T |
EEI (Energy Efficiency Index) | 80 % |
Electrical Input / Power | 140 W |
Current | 1.1 A |
Voltage / Frequency | 230–240 V AC, 50 Hz |
Power Cable Length | 240 cm |
Product Dimensions (H × W × D) | 1,769 × 557 × 549 mm |
Built‑in Niche Dimensions | Height: 1,780 mm; Width: 560 mm; Depth: 551 mm |
Depth without Handle | 549 mm |
Depth with Doors Open (90°) | 1,085 mm |
Width with Doors Open (max) | 780 mm |
Net Weight | 68 kg |
Gross / Packaged Weight | 70 kg |
