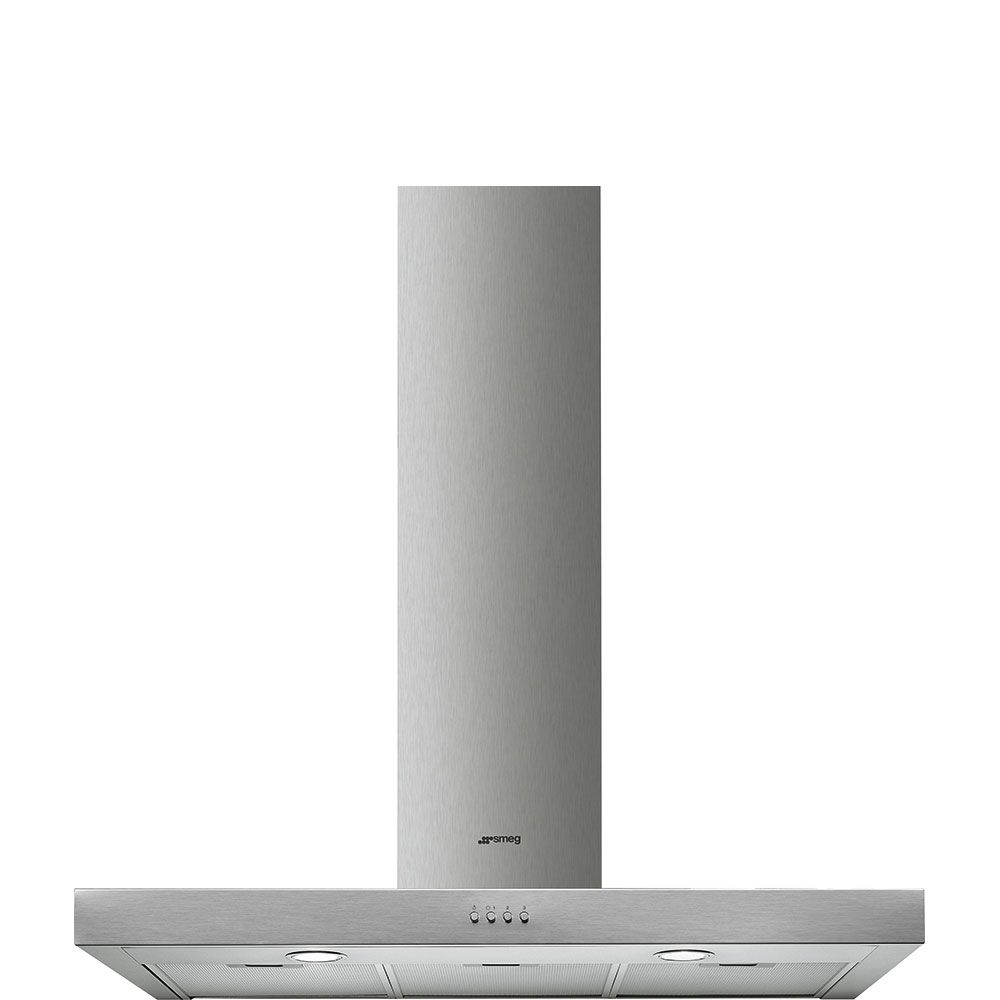

The SMEG KATE900EX is a stylish, mid-size decorative wall hood in T‑shape form, offering both form and function. It is built in brushed stainless steel with a Universale aesthetic, intended to blend with a range of kitchen designs. It provides effective extraction via three speed levels, plus LED lighting to illuminate the stove area. Grease filters are washable, and the hood supports either ducted (venting to outside) or recirculation modes (with charcoal filters). Its slim T‑shape design ensures coverage over a 90 cm cooktop, making it suitable for many standard hob configurations. Engineered for balance between noise and performance, it’s positioned as a high-quality hood for everyday kitchens.
Feature | Detail |
---|---|
Type / Installation | Decorative wall hood (chimney style, T‑shape) |
Width | 90 cm (898 mm) |
Depth | 450 mm |
Height | 540 mm (body) |
Finish | Brushed stainless steel (satin) |
Control Type | Push-button (mechanical) |
Fan Speeds | 3 speeds |
Lighting | 2 × LED lamps |
Light Power | 2.5 W total |
Light Color Temperature | 3,500 K |
Grease Filters | 3 aluminium filters (washable) |
Vent / Outlet Diameter | 150 mm |
Minimum Clearance from Gas Hob | 650 mm |
Minimum Clearance from Electric Hob | 500 mm |
Non‑return Valve | Yes |
Extraction Modes | Ducted extraction / recirculation (charcoal filter optional) |
Parameter | Value |
---|---|
Maximum Free‑Air Extraction Capacity | 612 m³/h |
Airflow at Max Speed (Qmax) | 581 m³/h |
Airflow at Min Speed (Qmin) | 240 m³/h |
Motor / Power Input | 175 W |
Nominal Electrical Power | 180 W |
Voltage / Frequency | 220‑240 V, 50‑60 Hz |
Noise Level at Min Speed | 47 dB(A) |
Noise Level at Max Speed | 68 dB(A) |
Efficiency Classes | Energy Efficiency: C Fluid Dynamic Efficiency: C Grease Filtering Efficiency: C Lighting Efficiency: A |
Annual Energy Consumption (AEChood) | 77 kWh/year |
Best Efficiency Point (Qbep) | 336 m³/h |
Pressure at B.E.P. (Pbep) | 334 Pa |
Power Input at B.E.P. (Wbep) | 155 W |
Illumination (on hob) | ~ 381 lux |
Weight (Net) | 13.0 kg |
Weight (Gross / Packaged) | 16.8 kg |
Product Dimensions (HxWxD) | 540 × 898 × 450 mm |
Cable Length | 1,500 mm |
