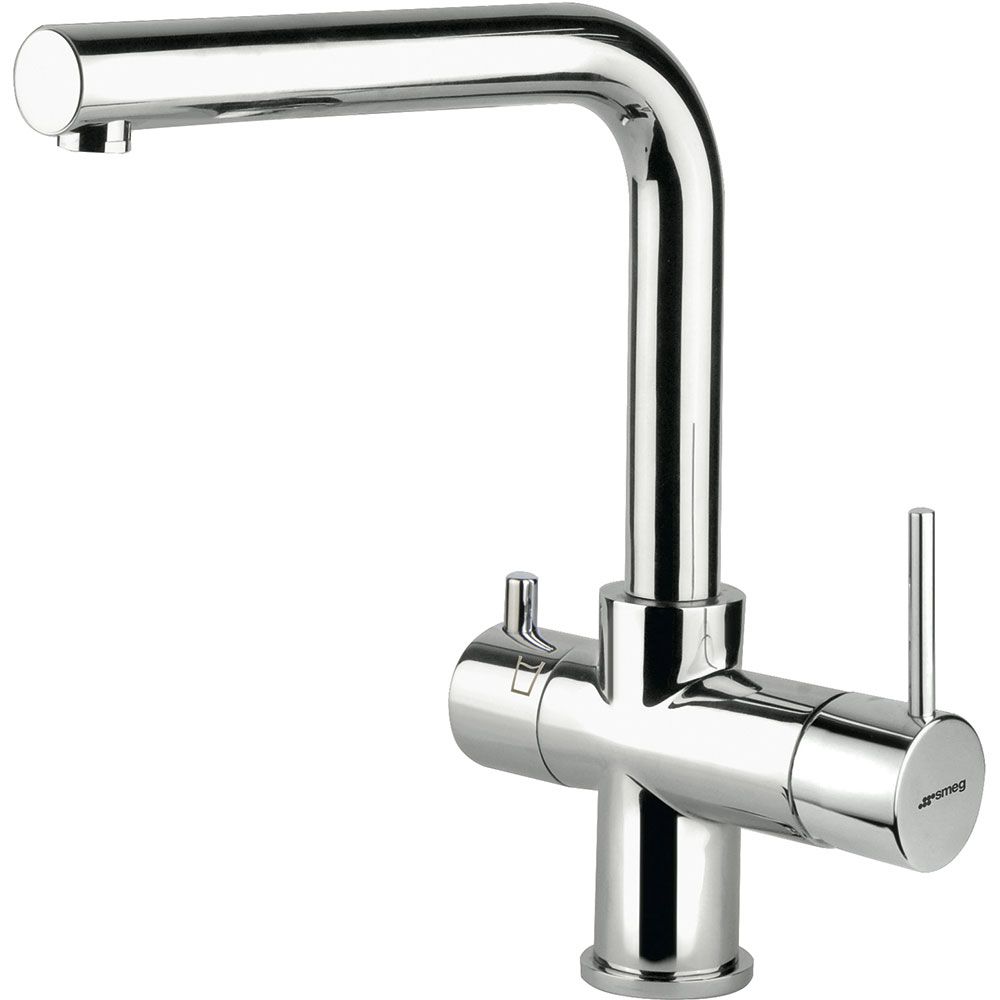

Smeg Double lever filtered water kitchen tap
SKU MAP99CR
$690.00
In stock
1
Save this product for later
Smeg Double lever filtered water kitchen tap
Product Details
Key Features
- Provides three water outputs: hot, cold, and filtered (via dedicated lever)
- Energy Saving Cartridge (ESC) system: in default (centrally depressed) lever position, only cold water is dispensed; hot water is obtained by turning further
- 360° swivel spout for full sink coverage and flexibility
- L‑shaped spout design with single‑jet flow
- Double flow aerator for filtered water (ensures efficient flow and reduces drips)
- Built-in under‑sink filtration system (filter cartridge FIAP 16007, capacity ~1,100 litres)
- Ceramic disc cartridge for the main hot/cold control (Ø 35 mm)
- Built-in anti‑drip / controlled flow handling via the aerator and spout design
- Brass body / construction for durability
- Gloss chrome finish (polished look)
- Three flexible hoses (hot, cold, filtered) for connections
- Tap hole requirement: single 35 mm diameter
Product Description
The Smeg MAP99CR is a 3‑in‑1 kitchen tap designed to provide hot, cold, and filtered water through a single unit. It features a dedicated lever for filtered water alongside the conventional hot/cold control. Built with premium materials and technology, it offers convenience and hygiene while maintaining a sleek, retro‑inspired aesthetic suitable for modern kitchens. Its design integrates both utility and style, delivering safe filtered water directly without needing a separate dispenser.
Specifications
| Feature | Detail |
|---|---|
| Model / Code | MAP99CR |
| Tap Type | 3-in-1 filtered water kitchen tap (hot, cold, filtered) |
| Spout Type / Style | L-shaped spout (fixed, non-pull-out) |
| Spout Rotation | 360° swivel spout |
| Flow Type | Single-jet output |
| Material (Body) | Brass |
| Finish | Chrome, gloss |
| Handles / Levers | Two controls: one for hot/cold, one for filtered water |
| Filter Included | Yes — FIAP 16007 cartridge (~1,100 L capacity) |
| Main Cartridge / Valve Type | 35 mm ceramic disc cartridge |
| Aerator | Yes, with special double flow for filtered water |
| Number of Flexible Hoses | 3 (hot, cold, filtered) |
| Hose Connection / Thread | 3/8″ |
| Hose Length | ~ 360 mm each |
| Tap Hole / Mounting | Single hole, Ø 35 mm |
| Max Deck Thickness | ~22 mm (maximum surface thickness) |
| ESC (Energy Saving Cartridge) | Yes, ensures only cold water in middle lever position |
Technical Data
| Specification | Value |
|---|---|
| Maximum Pressure | 10 bar |
| Minimum Pressure | 0.5 bar |
| Optimal (Recommended) Pressure | 3 bar |
| Product Height (above counter) | 272 mm |
| Reach / Spout Extension | ~234 mm from mounting surface |
| Diameter at Deck Level | 48 mm (above deck) |
| Net Weight | 4.80 kg |
| Gross / Packaged Weight | 6.24 kg |
| Package Dimensions (WxDxH) | 330 × 70 × 440 mm |
| Packing / Box Height | 440 mm |
| Packing Depth | 70 mm |
| Packing Width | 330 mm |
Always safe water
The under-sink filtration system ensures safe, high quality water directly from the tap, providing convenience and well-being every day.
